Description

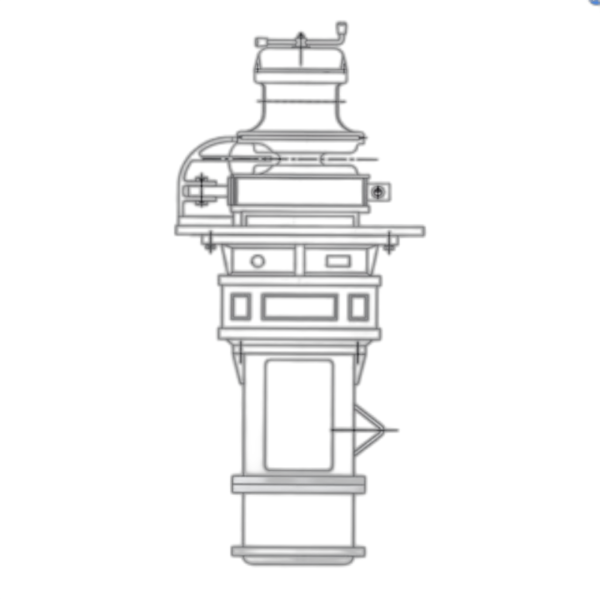

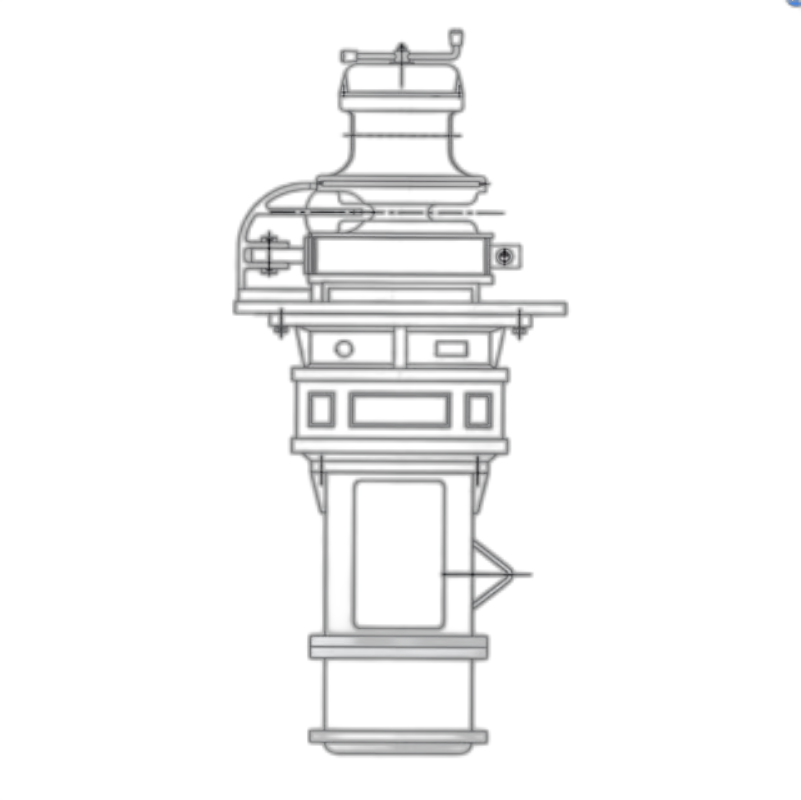

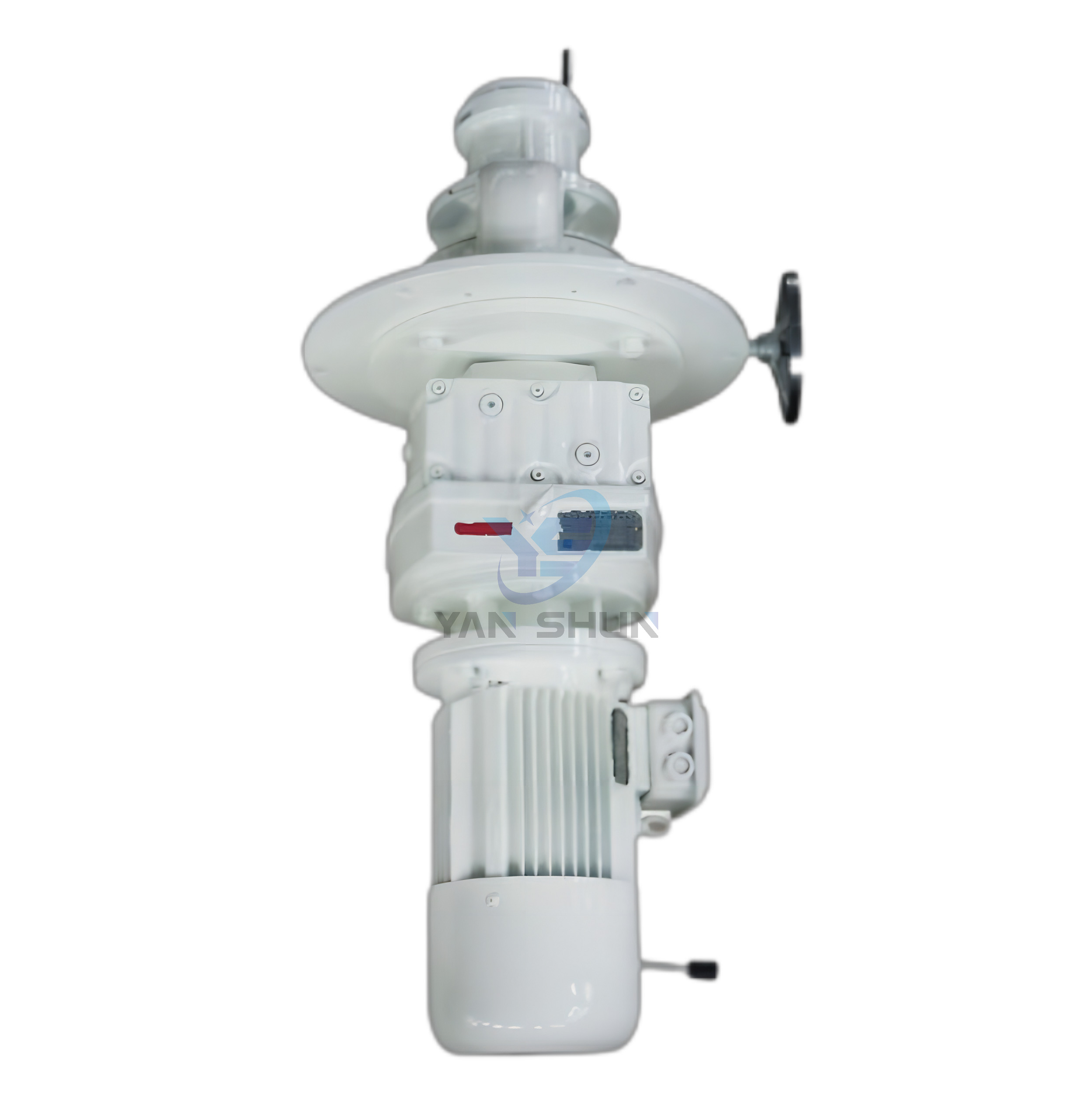

Anchor Capstan
- Code: YSMOD39
- FAQ
1. Driving Method: Electric or Hydraulic?
2. Rated Load? (e.g. 60KN)
3. Anchoring Speed? (e.g. 9m/min)
4. Anchor Chain Dia. and Grade? (e.g. 22mm, U2)
5. Capstan Dia.?
6. Power Supply? (e.g. 380V, 50Hz, 3Ph)
7. Should be approved by which Classification Society? e.g. CCS, BV, LR, ABS, NK, DNV-GL.
8. Qty: (?)set - Technical Parameters
| Chain Dia. (mm) | Rated Load (KN AM2) | Overload Load (KN AM2) | Holding Load (KN AM2) | Power (kW) | |
| Electric | Hydraulic | ||||
| 12.5 | 6.6 | 9.9 | 41.4 | 3/1.2 | 4 |
| 14 | 8.3 | 12.5 | 52.2 | 3/1.2 | 4 |
| 16 | 10.9 | 16.4 | 67.5 | 4.3/1.7 | 5.5 |
| 17.5 | 13 | 19.5 | 80.5 | 4.3/1.7 | 5.5 |
| 19 | 15.3 | 23 | 94.9 | 6/2.5 | 5.5 |
| 20.5 | 17.9 | 26.9 | 109.8 | 6/2.5 | 7.5 |
| 22 | 20.6 | 30.9 | 126 | 6/2.5 | 7.5 |
| 24 | 24.5 | 36.8 | 145 | 8.5/3.5 | 11 |
| 26 | 28.7 | 43 | 175 | 8.5/3.5 | 11 |
| 28 | 33.3 | 49.9 | 202 | 11/11/7.5 | 15 |
| 30 | 38.3 | 57.5 | 231 | 11/11/7.5 | 15 |
| 32 | 43.5 | 65.3 | 262 | 12/3.5 | 18.5 |
| 34 | 49.1 | 73.6 | 295 | 16/16/11 | 22 |
| 36 | 55.1 | 82.6 | 329 | 18/5 | 30 |
What is Anchor Capstan?
An anchor capstan is a device used on boats and ships to help raise or lower the anchor in order to help with anchoring and mooring. Anchor Capstan is a revolutionary anchoring system that utilizes a capstan-style drum to provide superior holding power in any condition. The system is designed to be easy to use and install, making it the perfect solution for boaters of all experience levels. The system provides superior holding power compared to traditional anchors, allowing you to stay in place even in high wind or current conditions.
How does Anchor Capstan work?
Anchor Capstan works by using a powerful motor to turn a capstan-style drum, which winds up the anchor line and provides exceptional holding power. This innovative design allows the system to hold fast in even the toughest conditions, giving you peace of mind on the water.
What are the benefits of Anchor Capstan?
The benefits of Anchor Capstan are numerous, which include:
a. Increased Efficiency: Anchor capstans make it easier and faster to anchor or moor a vessel. They provide a mechanical advantage that reduces the effort required, allowing crew members to work more efficiently.
b. Improved Safety: By reducing the amount of manual labor required to anchor or moor a vessel, anchor capstans can help prevent accidents and injuries caused by physical strain or fatigue.
c. Better Control: The use of an anchor capstan allows for better control over the vessel’s movements, enabling crew members to adjust the position or direction of the boat more precisely.
d. Reduced Wear and Tear: Using an anchor capstan reduces wear and tear on other equipment such as windlasses or winches, which can save money on maintenance costs over time.
e. Versatility: Anchor capstans can be used for a variety of tasks beyond anchoring and mooring, including hoisting cargo, towing, and even as a backup power source in emergency situations.
Overall, the use of an anchor capstan can greatly improve the efficiency, safety, and versatility of a vessel, making it an essential piece of equipment for many boat owners. If you’ve ever been on a boat, you know the importance of having a reliable and efficient winch. Whether you’re anchoring, docking, or mooring, a good winch can make all the difference. That’s where Anchor Capstan comes in.
What’s the difference between an Electric anchor capstan and a Hydraulic anchor capstan?
The main difference between them lies in how they generate and transfer power. The Electric anchor capstan operates using an electric motor while the Hydraulic anchor capstan operates using a hydraulic pump.
We would appreciate feedback from you.
Thank you for considering and purchasing Yan Shun.
