Description

CB/T 178-1996 Spiral Chain Stopper / Screw Type Cable Releaser / Swivel Type Chain Stopper / Screw Type Releasing Gear / Screw Type Chain Cable Compressor

• Code: YSMOD07
• FAQ
  • 1. Type: (?)
  • 2. for Chain Dia.: (?)
  • 3. for Chain Grade: (?)
  • 4. SWL Capacity : (?)
  • 5. What kind of certificate (if specified)? / Should be approved by which Classification Society?

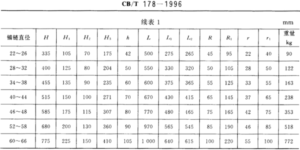

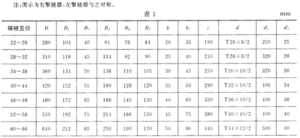

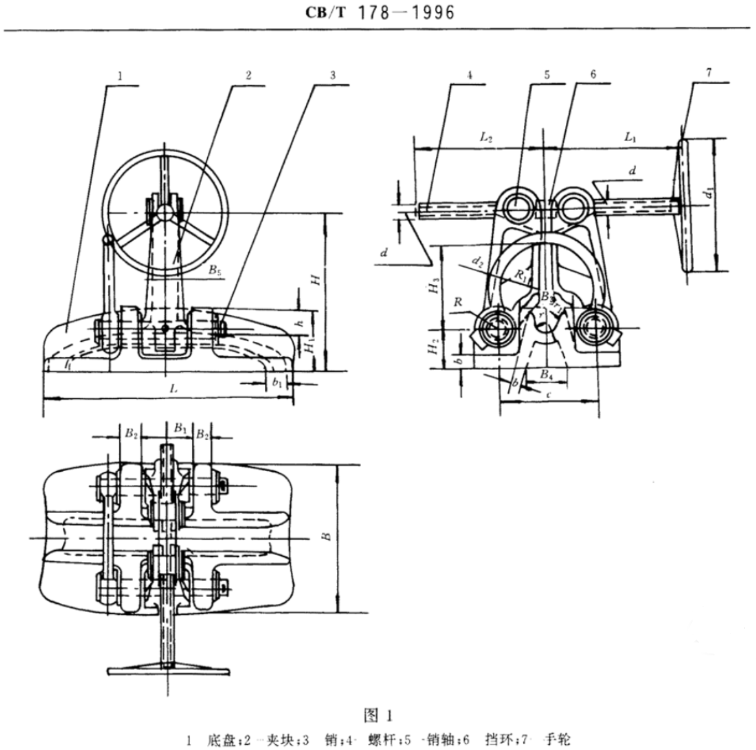

• type A: for Grade 2 Chain Cable — for Chain Dia. 22mm~66mm

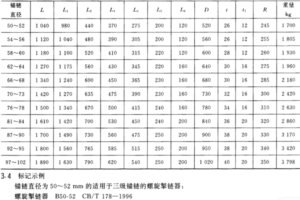

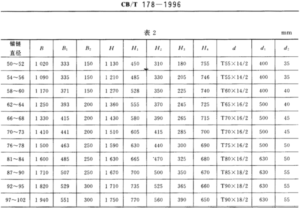

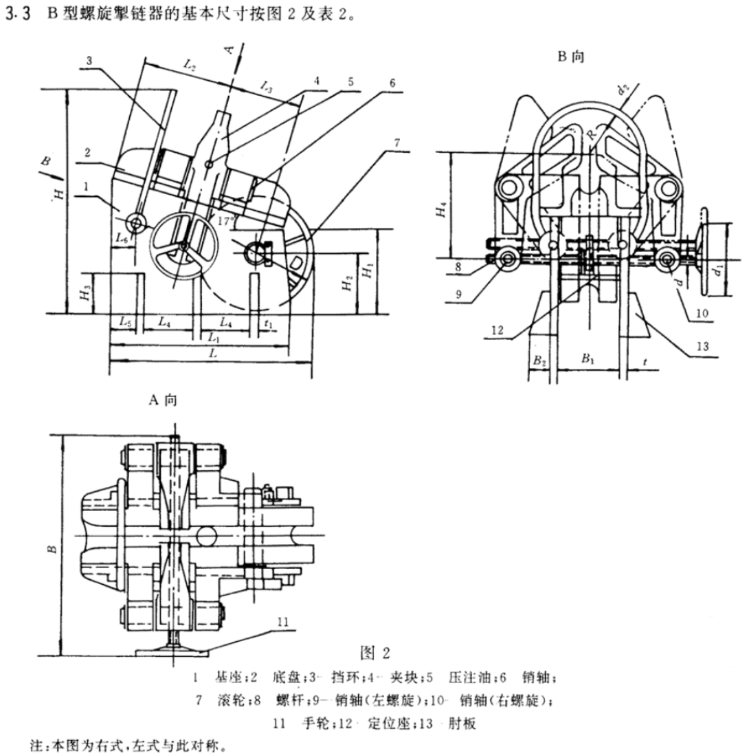

• type B: for Grade 3 Chain Cable — for Chain Dia. 50mm~102mm

What is Anchor Chain Cable Stopper?

The primary purpose of the anchor chain cable stopper is to hold the anchor chain in place and prevent it from slipping, which could cause the vessel to drift away from its intended location. In addition to this, the stopper also helps to reduce the stress on the anchor windlass and other components of the anchoring system.

Anchor chain cable stoppers come in different designs, but they all generally work in the same way. They are made of durable materials such as cast steel or stainless steel, and are designed to withstand the heavy loads that are placed on them.

Overall, the anchor chain cable stopper is an essential component of any anchoring system, and plays a critical role in keeping the vessel secure and stationary while at anchor.
