Description

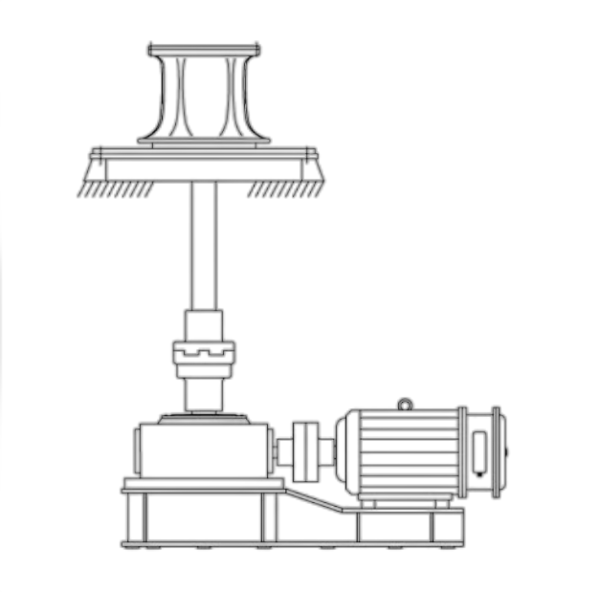

Electric Capstan type C, Prime Motor and Gearbox installed at the Cabin Bottom Deck
- Code: YSMOD36
- FAQ
1. Installation Way (Please select one of the below):
A – Prime Motor and Gear Box installed in Deck
B – Vertical Installation
C – Prime Motor and Gearbox installed at the Cabin Bottom Deck”
2. Driving Method: Electric or Hydraulic?
3. Rated Load? (e.g. 200KN)
4. Speed? (e.g. 9m/min)
5. Rope Dia.?
6. Capstan Dia.?
7. Power Supply? (e.g. 380V, 50Hz, 3Ph)
8. Should be approved by which Classification Society? e.g. CCS, BV, LR, ABS, NK, DNV-GL.
9. Qty: (?)set - Technical Parameters
| Rated Load (KN) | Holding Load (KN) | Speed (m/min) | Power (kW) | |
| Electric | Hydraulic | |||
| 10 | 30 | ≥12m | 3/1.2 | 5.5 |
| 15 | 45 | ≥12m | 4.3/1.7 | 7.5 |
| 20 | 60 | ≥12m | 6/2.5 | 11 |
| 25 | 75 | ≥10m | 6/2.5 | 11 |
| 30 | 90 | ≥10m | 8.5/3.5 | 11 |
| 35 | 100 | ≥10m | 8.5/3.5 | 15 |
| 40 | 120 | ≥10m | 11/11/7.5 | 15 |
| 50 | 150 | ≥9m | 11/11/7.5 | 18.5 |
| 60 | 180 | ≥9m | 12/3.5 | 18.5 |
| 70 | 200 | ≥9m | 16/16/11 | 22 |
| 80 | 240 | ≥9m | 18/5 | 30 |
| 100 | 300 | ≥9m | 22/22/16 | 30 |
What is Electric Capstan?
An electric capstan is an electrical device that uses a motor or an electric power source to rotate a drum or a cylinder. It is commonly used for marine and industrial applications where there is a need to lift or move heavy loads, such as anchor lines or mooring ropes on ships.
The electric capstan consists of a cylindrical drum or spool that is rotated by an electric motor. The rope or cable is wound around the drum, and as the drum rotates, it pulls the load. The electric capstan can be mounted on a deck or on a wall depending on the application.
The electric capstan has several advantages over the manual capstan. It requires less effort to operate and can handle heavier loads without causing strain or injury to the operator. Additionally, it is more precise in controlling the speed and direction of the load.
Overall, the electric capstan is a reliable and efficient device that plays a critical role in many industrial and marine applications.
