Description

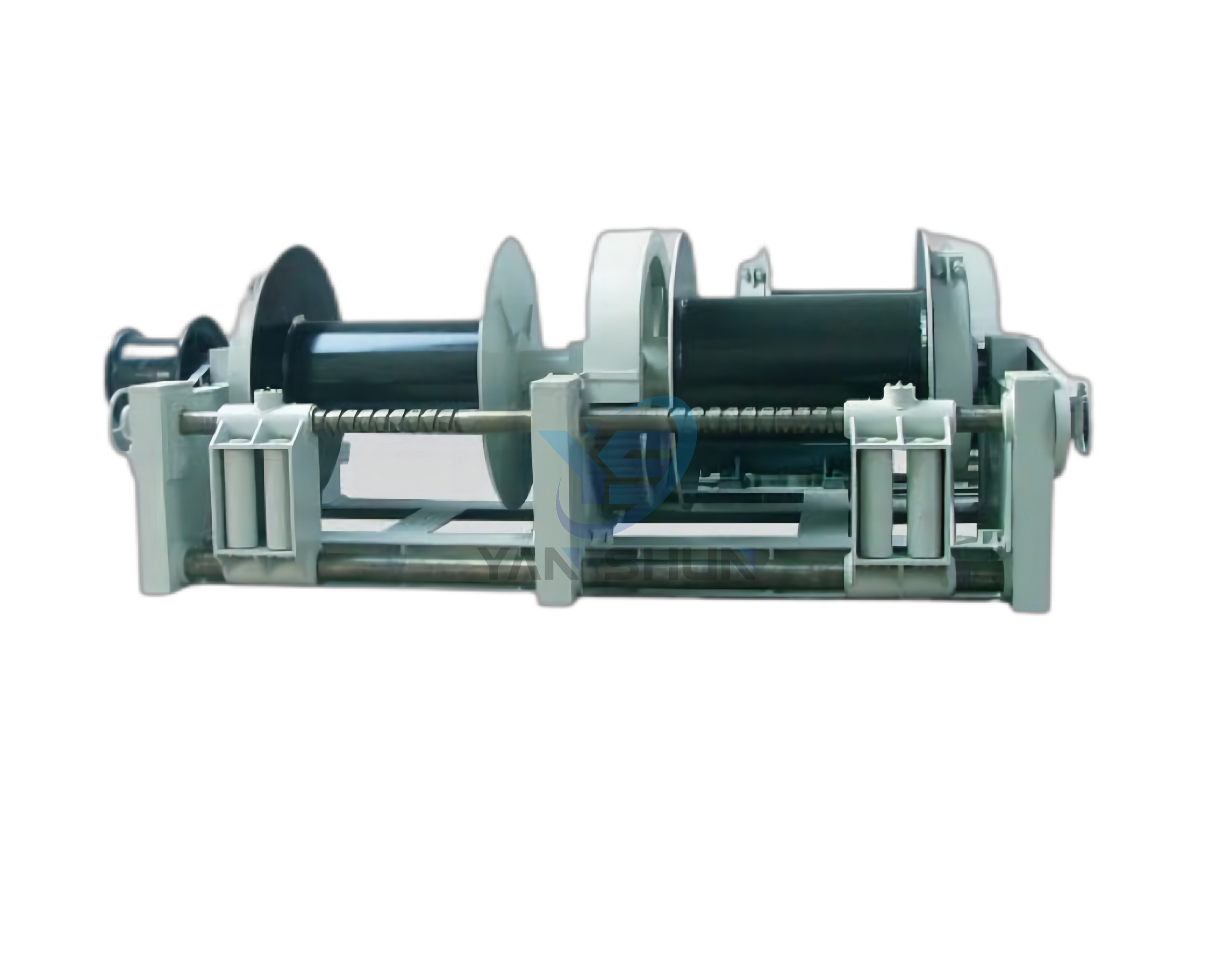

Electric Double Drum Mooring Winch
- Code: YSMOD29
- FAQ
1. Ship type?
2. Type: Mooring Winch, Cargo Loading Winch, Hydrology Winch, or Accommodation Ladder Winch?
3. Drum Qty: Single Drum or Double Drum?
4. Drum Rated Load? (e.g. 160KN)
5. Drum Rated Speed? (e.g. 9m/min)
6. Rope Dia.?
7. Drum Capacity?
8. Drum Arrangement: Front and Back arrangement(Waterfall type) or Side by Side arrangement(Juxtaposition type)?
9. Driving Method: Electric, Hydraulic, or Diesel Engine driving?
10. With Warping Head(also named gypsy wheel / winch head / Drum-end) or Without??
11. If Hydraulic type, do you need us to supply the Hydraulic Power Pack?
12. Power Supply? (e.g. 380V, 50Hz, 3Ph)
13. Should be approved by which Classification Society? e.g. CCS, BV, LR, ABS, NK, DNV-GL.
14. Qty: (?)set - Technical Parameters
| Rated Load (KN) | Holding Load (KN) | Speed (m/min) | Power (kW) | |
| Electric | Hydraulic | |||
| 10 | 30 | ≥12m | 3/1.2 | 5.5 |
| 15 | 45 | ≥12m | 4.3/1.7 | 7.5 |
| 20 | 60 | ≥12m | 6/2.5 | 11 |
| 25 | 75 | ≥10m | 6/2.5 | 11 |
| 30 | 90 | ≥10m | 8.5/3.5 | 11 |
| 35 | 100 | ≥10m | 8.5/3.5 | 15 |
| 40 | 120 | ≥10m | 11/11/7.5 | 15 |
| 50 | 150 | ≥9m | 11/11/7.5 | 18.5 |
| 60 | 180 | ≥9m | 12/3.5 | 18.5 |
| 70 | 200 | ≥9m | 16/16/11 | 22 |
| 80 | 240 | ≥9m | 18/5 | 30 |
| 100 | 300 | ≥9m | 22/22/16 | 30 |
| 120 | 360 | ≥9m | 30/30/22 | 37 |
| 150 | 450 | ≥12m | 45/45/30 | 55 |
| 160 | 480 | ≥12m | 45/45/30 | 75 |
| 200 | 600 | ≥9m | 45/45/30 | 75 |
| 250 | 750 | ≥10m | 60/60/45 | 75 |
| 300 | 900 | ≥9m | 60/60/45 | 75 |
| 350 | 1000 | ≥9m | 90 | |
| 400 | 1200 | ≥9m | 110 | |

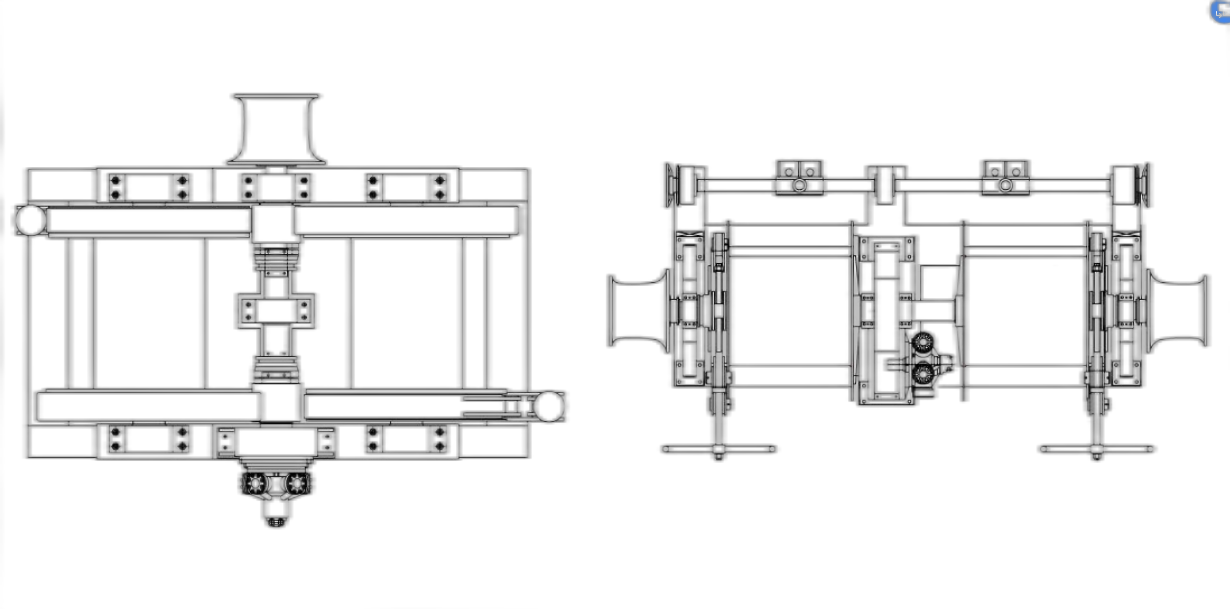

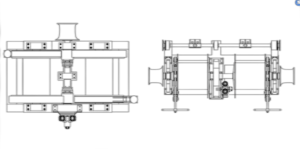

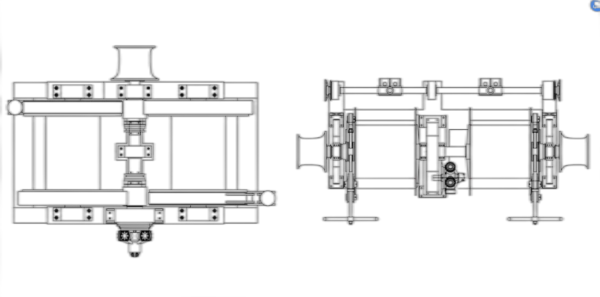

What is Electric Double Drum Mooring Winch?
An Electric Double Drum Mooring Winch is a type of winch that is designed to handle two lines simultaneously. It is commonly used on larger vessels where more mooring lines are required, such as cargo ships, tankers, drilling rigs, and offshore platforms.
The winch consists of two drums mounted side by side that are powered by electric motors. Each drum can store and release a separate rope or wire cable. Each with its own motor, brake system, and control system, which allows it to handle two ropes or wire cables simultaneously, in order to wind and unwind the mooring ropes that hold the vessel in place while it is docked or anchored. The winch is powered by an electric motor, which drives the drum through a gearbox. The winch also includes a brake system, a control system, and other necessary components for operation.
The double drum configuration allows for greater flexibility in handling multiple mooring lines at the same time, making it easier to secure and release a vessel from a dock or other structure. For example, one drum can be used for the anchor line while the other is used for the ship’s mooring ropes. Alternatively, both drums can be used for the same line to increase the pulling power of the winch. The Double Drum Mooring Winch can be controlled remotely from a central location on the ship or platform, allowing the operator to adjust tension and slack in the lines as needed.
We would appreciate feedback from you.
Thank you for considering and purchasing Yan Shun.
