Description

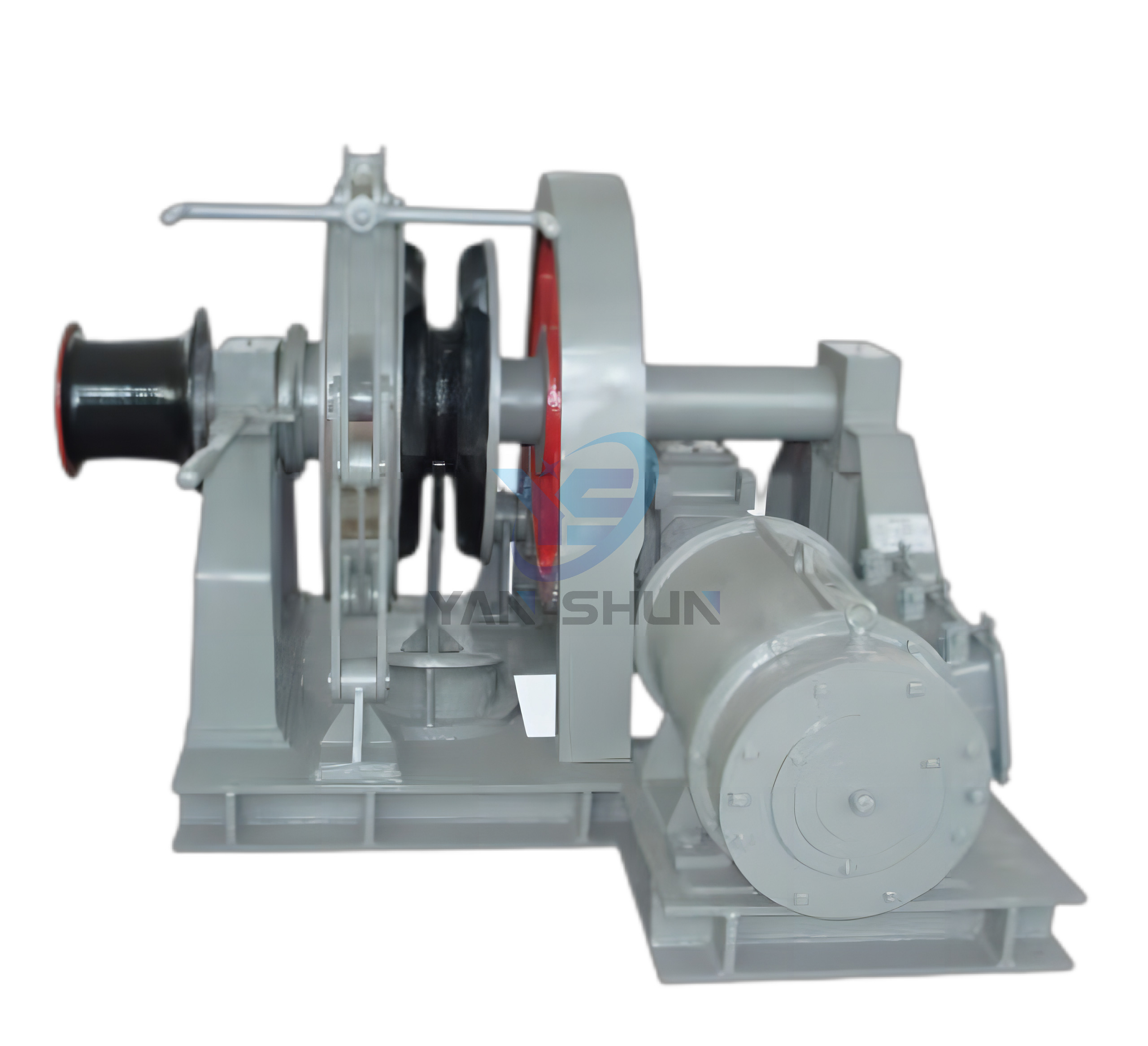

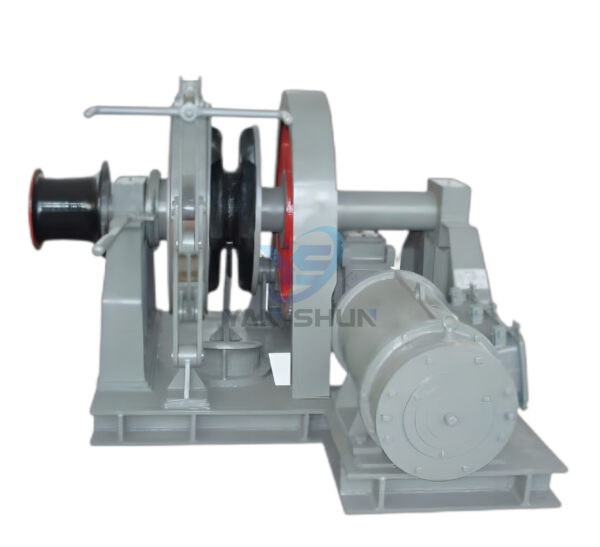

Electric Single Gypsy Drum Windlass
- Code: YSMOD20
- FAQ
1. Ship type?
2. Gypsy Qty: Single Gypsy or Double Gypsy?
3. Rated Load? (e.g. 160KN)
4. Anchoring Speed? (e.g. 10m/min)
5. Anchor Chain Dia. and Grade? (e.g. 22mm, U2)
6. Length of Anchor Chain?
7. Driving Method: Electric, Hydraulic, or Diesel Engine driving?
8. With Warping Head(also named gypsy wheel / winch head / Drum-end) or Without??
9. If Hydraulic type, do you need us to supply the Hydraulic Power Pack?
10. Power Supply? (e.g. 380V, 50Hz, 3Ph)
11. With Drum or Without, if with Drum, it should be Combined Windlass, please advise the following specs.:
a. Drum Qty?
b. Drum Rated Load? (e.g. 160KN)
c. Drum Rated Speed?
d. Rope Dia.?
e. Drum Capacity?
f. Mooring Winch’s Driving Method: Electric, Hydraulic, or Diesel Engine driving?”
12. Should be approved by which Classification Society? e.g. CCS, BV, LR, ABS, NK, DNV-GL.
13. Qty: (?)set - Technical Parameters
| Chain Dia. (mm) | Rated Load (KN AM2) | Overload Load (KN AM2) | Holding Load (KN AM2) | Power (kW) | |
| Electric | Hydraulic | ||||
| 12.5 | 6.6 | 9.9 | 41.4 | 3/1.2 | 4 |
| 14 | 8.3 | 12.5 | 52.2 | 3/1.2 | 4 |
| 16 | 10.9 | 16.4 | 67.5 | 4.3/1.7 | 5.5 |
| 17.5 | 13 | 19.5 | 80.5 | 4.3/1.7 | 5.5 |
| 19 | 15.3 | 23 | 94.9 | 6/2.5 | 5.5 |
| 20.5 | 17.9 | 26.9 | 109.8 | 6/2.5 | 7.5 |
| 22 | 20.6 | 30.9 | 126 | 6/2.5 | 7.5 |
| 24 | 24.5 | 36.8 | 145 | 8.5/3.5 | 11 |
| 26 | 28.7 | 43 | 175 | 8.5/3.5 | 11 |
| 28 | 33.3 | 49.9 | 202 | 11/11/7.5 | 15 |
| 30 | 38.3 | 57.5 | 231 | 11/11/7.5 | 15 |
| 32 | 43.5 | 65.3 | 262 | 12/3.5 | 18.5 |
| 34 | 49.1 | 73.6 | 295 | 16/16/11 | 22 |
| 36 | 55.1 | 82.6 | 329 | 18/5 | 30 |
| 38 | 61.3 | 91.9 | 365 | 22/22/16 | 30 |
| 40 | 68 | 102 | 403 | 22/22/16 | 30 |
| 42 | 74.5 | 111.7 | 442 | 22/22/16 | 30 |
| 44 | 82.3 | 123.5 | 486 | 30/30/22 | 37 |
| 46 | 89.9 | 134.9 | 527 | 30/30/22 | 37 |
What is Electric Single Gypsy Drum Windlass?
An Electric Single Gypsy Drum Windlass is a type of winch or windlass that is used to raise and lower anchors on boats and ships. It consists of an electric motor that powers a drum around which a chain or rope is wound. The drum is typically fitted with a gypsy, which is a wheel with teeth that grip the chain or rope and enable it to be pulled in or paid out.
The “single” in the name refers to the fact that there is only one drum and gypsy on the windlass, as opposed to a double windlass which has two gypsies for handling two different anchors at once.
The term “gypsy” is often used interchangeably with “wildcat”, which is a similar mechanism that is designed specifically for handling chains. In this context, a “gypsy drum windlass” can refer to a windlass that is equipped with both a gypsy and a wildcat.
An electric single gypsy drum windlass is a type of device used on boats and ships to hoist, lower, and control the anchor. It consists of an electric motor that powers a drum around which the anchor chain or rope is wound. The “gypsy” is a particular part of the windlass that grips the chain or rope, allowing it to be pulled in or let out as required.
The “single” designation means that there is only one gypsy, rather than multiple ones for different types of chains or ropes. Windlasses can come in different sizes and capacities depending on the size of the boat and the weight of the anchor.
