Description

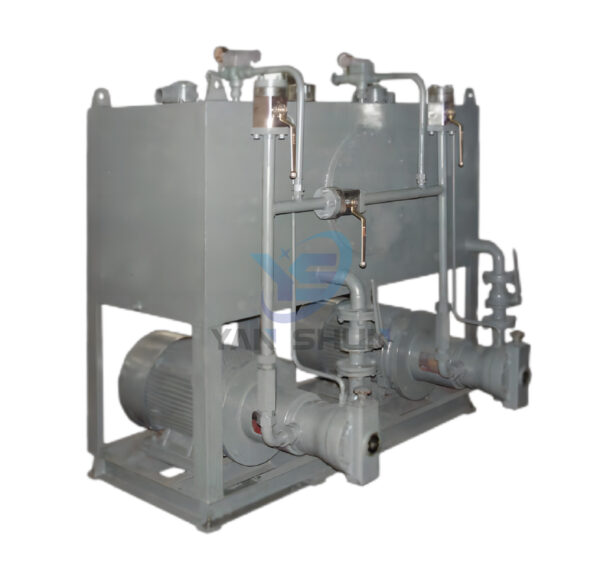

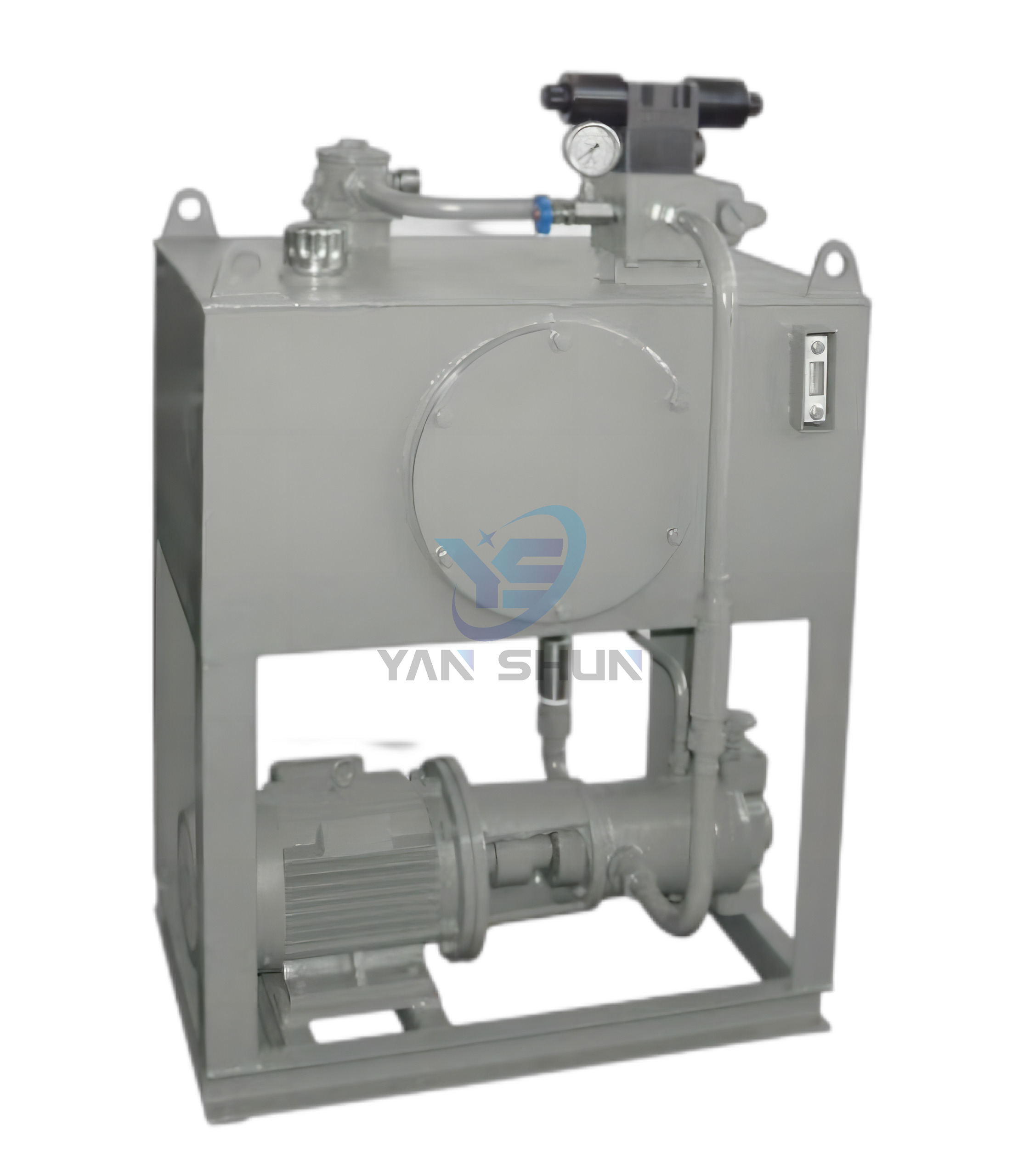

Power Pack Unit

• Code: YSMOD33
• FAQ
  1. Application?
  2. Capacity?
  3. Single or Multi-Electric Motor?
  4. Single or Multi-Pump?
  5. Should be approved by which Classification Society? e.g. CCS, BV, LR, ABS, NK, DNV-GL.
  6. Qty: (?)set

What is Marine Power Pack Unit?

A Marine Power Pack Unit is a type of power pack specifically designed for the needs of marine vessels. It typically consists of a power source, such as a diesel engine or electric motor, a generator, and a control panel.

The power pack unit is used to provide electrical power to the various systems on board a ship or boat, including lighting, navigation equipment, pumps, and communication devices.

Marine power pack units can be particularly important in emergency situations where the main power supply on the vessel fails, as they can provide backup power to critical systems until the main power supply can be restored.

In addition, some marine power pack units are designed for use in environmentally sensitive areas, such as nature reserves or protected coastlines, and may feature low-emission engines or batteries to minimize their impact on the environment.



A. Power Pack Unit for Marine Winch

A Power Pack Unit for a marine winch is a specialized power pack that is used to provide hydraulic or electric power to operate a winch on a marine vessel. Marine winches are commonly used for various purposes such as anchoring, towing, and mooring of vessels.

A power pack unit for a marine winch typically includes a hydraulic pump or an electric motor, a tank(oil reservoir) to store hydraulic fluid or oil, a control valve to regulate the flow of fluid or electricity, a control panel, and necessary safety features such as pressure relief valves and emergency shutoffs. The hydraulic pump is powered by an electric motor or combustion engine and pumps hydraulic fluid into the winch.

The power pack unit provides the force needed to operate the winch, which can be used to pull heavy loads or make adjustments to the vessel’s position. Hydraulic power packs are commonly used in larger ships with heavy winches, while electric power packs are used in smaller vessels or winches with lighter loads.

The power pack unit for a marine winch needs to be reliable and efficient, as it plays a critical role in the safe and effective operation of the winch. Regular maintenance and inspection are necessary to ensure that the power pack unit is working correctly and to detect any potential issues before they become significant problems.



B. Power Pack Unit for Marine Windlass

The Power Pack Unit, also known as Power Supply Unit, is a hydraulic power unit that provides the necessary power and pressure to operate a windlass on a boat or ship. It provides the necessary power to operate the windlass motor and lift or lower the anchor.

The Power Pack Unit typically consists of an electric motor, hydraulic pump, reservoir tank, and control valves. It may also include a pressure switch, pressure gauge, pressure relief valve, and other components necessary for generating hydraulic power. The unit is usually mounted in a separate location from the windlass itself, such as in the engine room or below deck, and connected to the windlass by hydraulic hoses.

When the windlass control lever is operated, hydraulic fluid is pumped. The hydraulic system provides the power and control required to operate the windlass, while the electric motor powers the hydraulic pump, and generates hydraulic pressure to move the anchor chain and rope through the windlass.

The Power Pack Unit ensures that the windlass functions effectively and efficiently, making it easier to raise or lower the anchor with precision and control. It is an essential component in the anchoring system of any boat or ship.
